Inert Bed Support Media for Catalyst and Adsorbent Beds

Inert bed support media are the hard, unreactive ceramic and alumina balls installed in graded layers below a working bed of catalyst or adsorbent, and often above it. Specified as catalyst bed support media or as adsorbent bed support, the balls do the same job in either service: the bottom layers carry the weight of the bed and keep the working media out of the outlet collector, holding the charge evenly above the support plate or screen, while a top hold-down layer keeps it steady against incoming flow.

The balls do no adsorbing and no catalyzing. Their job is mechanical, to carry the load and stay inert under process conditions. Interra Global supplies catalyst support balls and adsorbent bed support in two material families: inert ceramic balls in silica-alumina ceramic, the general-purpose choice, and inert alumina balls for hot or silica-sensitive service. Four products cover the range, from routine dehydration beds to steam reforming.

How to Choose Catalyst Bed Support Media

Selection starts with the service. Catalyst and adsorbent beds running at or below 325°C (617°F), which covers molecular sieve dehydration, activated alumina and silica gel beds, and the bulk of adsorption units, sit inside the envelope of ceramic support balls like cSPHERE® A25, the house brand. That makes A25 the default for most beds Interra Global supplies.

Chemistry narrows it from there. In ammonia and synthesis gas plants, high temperature and high water partial pressure leach silica out of standard media and carry it downstream onto the catalyst. Alumina support balls like PROX-SVERS® T-46, low in silica and rated to 3200°F (1760°C), are built to resist exactly that. Where purity requirements are strictest, as in steam reforming and the adsorbent beds that purify reactive monomers, high purity alumina balls like PROX-SVERS® T-99 take silica out of the picture at 99%+ alumina.

Buying against a specification that names PROX-SVERS® T-86? That ceramic ball is supplied under its own name, rated to 1800°F (982°C), with specifications and available sizes on the PROX-SVERS T-86 product page.

Loading and Change-out

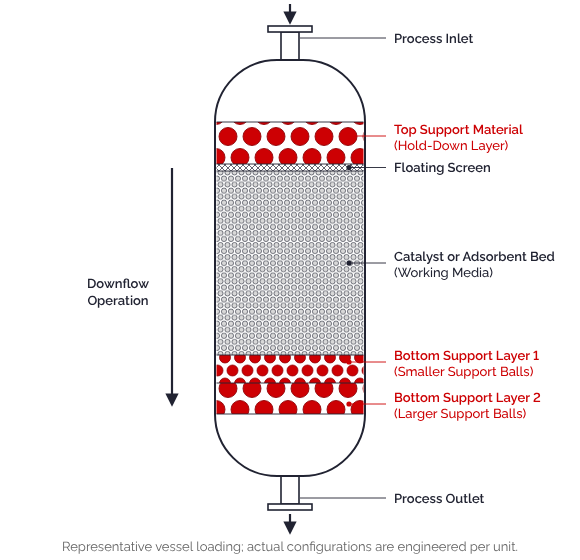

The support layers are the bed grading a loading drawing specifies: each layer sized to hold the one above it and to keep working media out of the collector, with the hold-down layer on top. Interra Global supplies the balls to the drawing and can advise on sizes and quantities when asked.

Inert support media typically come out with the sieve: when an adsorbent bed reaches change-out, the support layers beneath it are usually removed and replaced along with the fresh charge, though some plants screen and reuse balls in good condition. Interra Global supplies mSORB® molecular sieve and inert bed support media together, so the adsorbent charge and the support balls beneath it can be specified and sourced from one supplier. All four grades ship in bulk; ball sizes, packaging, and current lead time are confirmed when a quote is requested.
