Interra Global process equipment: a mobile bulk media vessel for H2S removal and an automated system that doses iron hydroxide powder into digesters as slurry.

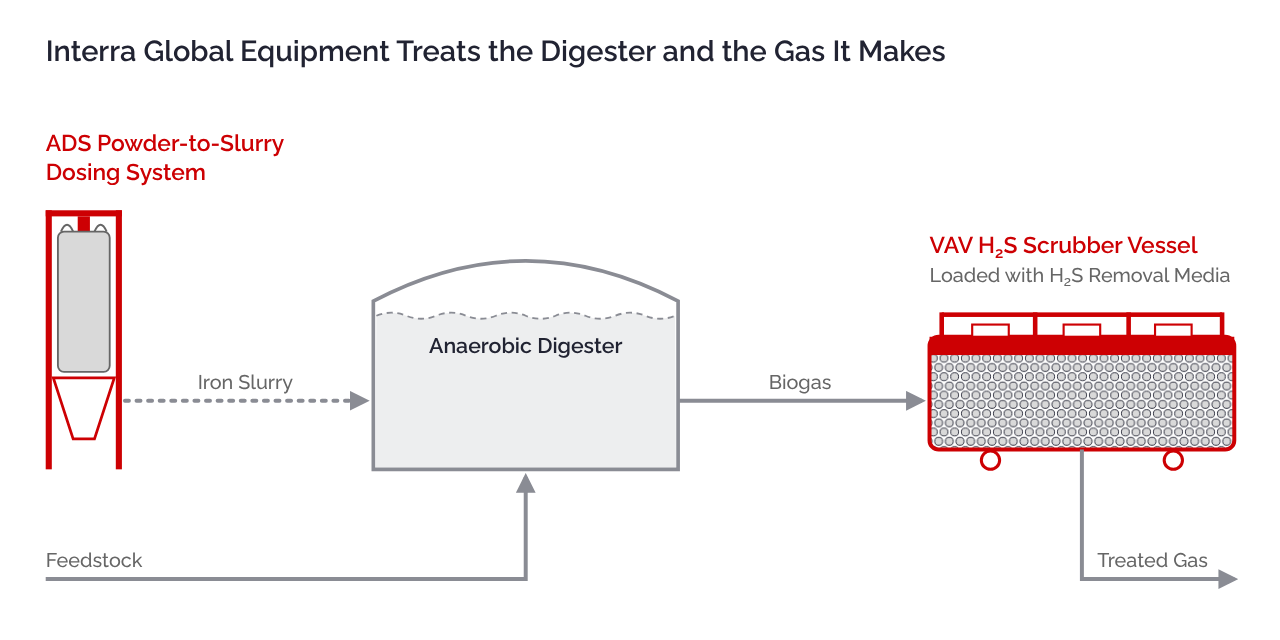

Interra Global designs and builds process equipment for bulk media service: systems that hold or dose the media the company supplies. The line covers two systems, both built for hydrogen sulfide control in biogas and digester operations. The Vacuum Adsorption Vessel treats the gas after it leaves the digester. The Automated Powder-to-Slurry Dosing System treats the digester itself. VACUUM ADSORPTION VESSEL A mobile bulk media vessel for hydrogen sulfide removal from landfill gas, wastewater digester gas, and agricultural biogas. Gas distributes across the full bed, so the media loads evenly rather than channeling and more of the bed is used before a changeout. The vessel sets on a gravel pad with no foundation or cement work, moves on heavy-duty rollers, and fits new systems and retrofits alike. Capacity and construction details are on the product page. Rental options are available. AUTOMATED POWDER-TO-SLURRY DOSING SYSTEM A bulk bag unloading and dosing system that converts iron hydroxide powder into slurry and doses it into the digester, continuously and without dust. Hard-to-wet iron powders are the reason it exists: a proprietary wetting stage takes the powder straight to slurry, and integrated PLC and HMI controls run unloading and dosing from one prewired panel, with water flow and pressure telemetry on the operator screen. Frame sizing matches the site's bulk bags, and weatherization and chemical doser packages are optional. CHOOSING BETWEEN THEM The two systems answer different requirements. When the requirement is a treated gas stream that meets an outlet specification, the vessel is the tool, loaded with iron hydroxide media matched to the inlet concentration and flow. When the requirement is lower sulfide in the digester itself, the dosing system is the tool. Interra's technical team reviews operating conditions and provides performance estimates across vessels, media, and digester additives on request. MEDIA AND ADDITIVES The vessel is loaded with FerroSorp® iron hydroxide media or comparable bulk media. The dosing system handles iron hydroxide powder. Interra also supplies digester additives for the same operations, so equipment, media, and additives for a digester come from one supplier. SUPPORT Installation guides and operating manuals, including media changeout procedures, are on each product page. Before purchase, Interra reviews operating conditions and provides performance estimates for the equipment and media; in service, it supports media changeouts and troubleshooting on request. FREQUENTLY ASKED QUESTIONS What is bulk media service? Applications where adsorbent or reactive media is loaded in bulk into a vessel or system, consumed over a run, and replaced at a changeout, as distinct from packaged desiccant products sold by the unit. Does the Vacuum Adsorption Vessel need a foundation? No. It sets on a gravel pad; no cement work is required. Can the equipment be rented? Rental options are available on the Vacuum Adsorption Vessel. Contact Interra for current terms. What is a changeout? The removal of spent media and refilling with fresh media. On the vessel, spent media exits through the dump door and fresh media loads through the top manways; the changeout guidelines on the product page cover the procedure. |
A mobile, high-capacity adsorption vessel engineered to maximize media utilization and improve the efficiency of hydrogen sulfide removal systems.
The Automated Powder-to-Slurry Dosing System delivers continuous, dust-free iron powder dosing with direct-to-slurry output and fully integrated controls.
