Natural Gas Dehydration Using Molecular Sieves

The Operational Constraint in Natural Gas Dehydration

Raw natural gas is saturated with water vapor. As pressure drops and temperatures fluctuate during compression, transport, and processing, this moisture condenses, forms hydrates, accelerates corrosion, and disrupts downstream equipment. To meet pipeline specifications and maintain operational stability, water must be reliably removed from the gas stream.

Why Water Must Be Removed from Natural Gas Streams

Water in natural gas is more than a quality issue; it is a system risk. Even trace moisture can freeze in valves, foul compressors, and degrade processing efficiency. Dehydration is a foundational step in natural gas handling, ensuring safe transport, consistent heating value, and protection of downstream assets across varying operating conditions.

Molecular Sieves as the Industry Standard for Gas Dehydration

Molecular sieves are widely adopted for natural gas dehydration because they remove water at the molecular level and maintain performance under high pressure and repeated regeneration cycles. Ther crystalline pore structure enables deep dehydration to very low water dew points, exceeding the limits of many alternative drying methods. For demanding applications, molecular sieves remain the dominant dehydration technology.

Performance of 3A and 4A Molecular Sieves in Dehydration Systems

3A Molecular Sieves

3A molecular sieves are used when selectivity is critical. Their pore size allows water molecules to be adsorbed while excluding larger components such as CO2, H2S, and heavier hydrocarbons. This selectivity minimizes co-adsorption and reduces the potential for undesirable side reactions, including COS formation during regeneration. As a result, 3A molecular sieves are frequently specified in gas streams where composition control and sulfur management are priorities.

4A Molecular Sieves

4A molecular sieves are regarded as the workhorse media for natural gas dehydration. With higher water capacity and efficient mass transfer, they are well-suited for typical dehydration applications where low pressure drop and operational simplicity are desired. Ther thermal stability supports aggressive regeneration conditions, enabling consistent performance over extended service intervals.

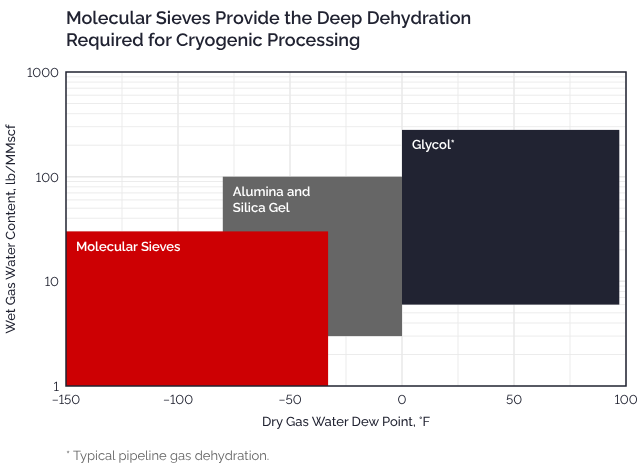

Limitations of Alternative Dehydration Methods

Liquid desiccants and other dehydration approaches can reduce moisture content but are limited in achievable dew point and are sensitive to operating variability. For applications requiring deep dehydration, predictable performance, and durability under cyclic conditions, these alternatives are often insufficient. Molecular sieves provide greater control and reliability in demanding natural gas environments.

Executing Reliable Natural Gas Dehydration at Scale

Achieving consistent dehydration performance requires addressing a range of operational challenges beyond simply selecting a sieve type. Variables such as fluctuations in gas composition, variations in flow rate, and the presence of contaminants can impose significant demands on system design and performance. The selection and sizing of molecular sieves must be critically evaluated in the context of each application's specific operational pressures and thermal conditions, as well as the potential for mechanical degradation or fouling due to impurities. Additionally, inadequate alignment between media formulation and regeneration protocol can exacerbate media attrition, shorten service cycles, and increase unplanned maintenance, ultimately risking the reliability of downstream processes. Therefore, an comprehensive understanding and critical assessment of these operational parameters is essential for optimizing system longevity and ensuring stable, efficient natural gas dehydration.

Interra Global applies proven dehydration principles through engineered molecular sieve solutions designed for natural gas service. By pairing high-quality media with application-specific technical support, Interra Global enables predictable dehydration performance, extended service intervals, and stable long-term operation.

Based on the preceding analysis of 3A and 4A molecular sieves, practitioners are advised to select mSORB® NG 3A or 4A molecular sieve solutions based on a rigorous evaluation of key decision criteria. These criteria should include the required selectivity for specific gas components, the water adsorption capacity required for the process, compatibility with the expected gas composition, tolerance to regeneration temperatures, and anticipated service life under the application's operating pressures and temperature cycles. Careful alignment of the molecular sieve choice with these operational parameters will support reliable dehydration performance and promote sustained operational efficiency.
