Molecular Sieve Adsorbents

Molecular sieves are adsorbents with crystalline frameworks and uniform pore openings sized in angstroms (the material is often shortened in the trade to mol sieve). Because every pore in a given type is effectively the same size, the material separates molecules by dimension and polarity: molecules small enough to enter the pores are adsorbed and held, while larger molecules pass by. That selectivity is what distinguishes molecular sieves from amorphous adsorbents such as silica gel and activated alumina, and it is why sieves are specified where deep drying or a sharp separation is required. Interra Global supplies molecular sieve in bulk under the mSORB® product line, alongside JLOX oxygen separation zeolites and carbon molecular sieve for nitrogen service.

Most commercial molecular sieves are synthetic zeolites: crystalline aluminosilicates manufactured to a defined crystal structure rather than mined. The zeolite framework carries a strong affinity for water and other polar molecules, which is what makes zeolite sieves effective desiccants at conditions where other media fall off. Carbon molecular sieve is the principal exception, achieving its selectivity through a carbon pore structure rather than a zeolite framework.

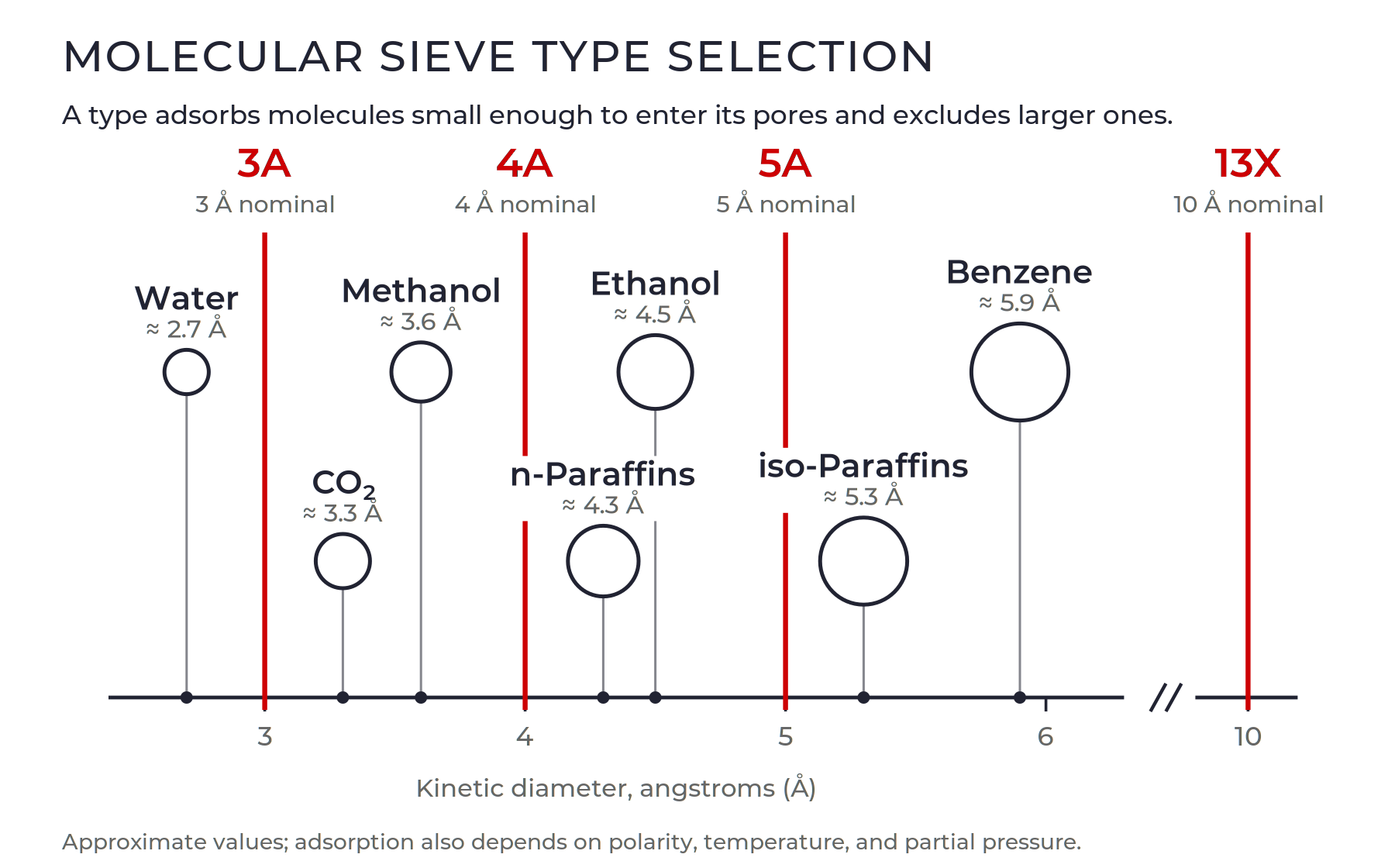

STANDARD TYPES AND HOW THEY DIFFER

3A (nominal 3 angstrom pore).

The tightest standard opening, produced by potassium exchange of the type A crystal. 3A adsorbs water while excluding nearly everything else, including ethanol and methanol, which makes it the standard choice for drying polar liquids and reactive gas streams where co-adsorption must be avoided. Application grades on this framework include mSORB 3A EDG for fuel ethanol service and mSORB 3A-NG for natural gas dehydration.

4A (nominal 4 angstrom pore).

The sodium form of the type A crystal and the general-purpose type. 4A takes in water, carbon dioxide, and other small molecules, serving static drying, packaging, and general gas and liquid drying where light co-adsorption is acceptable. mSORB 4A-NG extends the type into high-capacity natural gas dehydration duty.

5A (nominal 5 angstrom pore).

The calcium-exchanged form of the type A crystal, opening the pore to normal paraffins and other slightly larger molecules. 5A serves n-paraffin separation and pressure swing adsorption gas purification alongside drying duty.

13X (nominal 10 angstrom pore).

The largest standard opening, built on the type X crystal. 13X handles molecules the A types exclude and is the standard choice for air prepurification ahead of cryogenic plants and for gas sweetening duty. The air plant and oxygen grades in this family typically draw on the X framework.

SELECTING A MOLECULAR SIEVE

Type selection typically starts with the molecules involved: what must be adsorbed, and what must stay out of the pores. From there, service conditions, co-adsorbates, regeneration method, and bed design narrow the choice, and each product page below carries the properties and documents for its grade. When an application spans products or the right grade is not obvious, Interra Global's technical staff review the service conditions and recommend a fit when called on.

FREQUENTLY ASKED QUESTIONS

What is a molecular sieve?

A molecular sieve is an adsorbent whose pores are uniform in size, so it separates molecules by dimension: those small enough to enter the pore structure are adsorbed and held, while larger molecules are excluded. Most commercial molecular sieves are synthetic zeolites, crystalline aluminosilicates manufactured with pore openings measured in angstroms.

What is the difference between adsorption and absorption?

Adsorption holds molecules on the surface of a material, including the internal surface of its pores. Absorption takes a substance into the bulk of a material, the way a sponge takes up water. Molecular sieves, silica gel, and activated alumina are adsorbents: water held by a sieve sits bound within the pore structure and is released during regeneration, which is what makes the material reusable.

How do molecular sieves differ from silica gel and activated alumina?

All three are regenerable desiccants; the difference is where each performs. Silica gel and activated alumina are amorphous, with a distribution of pore sizes, strong capacity at warm and humid conditions, and moderate dryness limits. Molecular sieves hold their capacity at low relative humidity and elevated temperature and reach far lower outlet moisture levels, which is why they are specified for deep drying and dew point critical service. Many dryer designs pair the materials, with gel or alumina taking the bulk water load ahead of a molecular sieve polishing bed.

How is molecular sieve regenerated?

Regeneration is the step that restores a loaded adsorbent to service by driving off what it has adsorbed. Molecular sieves are typically regenerated thermally, with a heated dry purge gas carrying the desorbed water out of the bed, and in some services by pressure swing. Regeneration conditions are set per product and application; each product page and data sheet carries the applicable guidance.

What do mesh and bead sizes mean?

Mesh sizes describe the screens a granular product passes and is retained on, so 4x8 material passes a 4 mesh screen and is retained on an 8 mesh screen; bead and pellet sizes are given directly in millimeters or inches. Size selection typically trades pressure drop against mass transfer rate, and the available sizes for each grade are listed on its product page.
