Plastic Fluorination Off-Gas Control with Activated Alumina

The Operational Constraint in Plastic Fluorination Off-Gas

Plastic fluorination involves evacuating the chamber atmosphere, which can cause brief, high-load off-gas events that test media strength, pressure stability (ΔP), and capture consistency. Unplanned ΔP excursions can cost hours of production downtime and lead to compliance penalties, underscoring the urgency of effectively addressing these fluctuations.

This page will guide you. through understanding the role of activated alumina in fluorination off-gas systems, explain how the alumina bed functions during evacuation, and delve into why media quality and consistency are crucial for stable, repeatable performance. You will see how the bed works in practice, why maintaining a high standard of quality is critical, and which specifications you should consider when selecting media.

How the Alumina Bed Works During Evacuation

During evacuation, gas is drawn from the fluorination chamber and passes through an activated alumina bed before venting. The alumina bed as the control point between the reactive off-gas and the stack.

In practice, the bed performs three functions:

• Capture and polish: remove residual fluorine-containing species to prevent them from reaching the vent.
• Buffer peaks: manage evacuation spikes that exceed average operating assumptions.
• Maintain hydraulic stability: ensure predictable ΔP and uniform flow distribution so the bed uses its full mass transfer zone rather than channeling.

Depending on operational conditions, the off-gas stream may contain various reactive forms of fluorine, such as hydrogen fluoride (HF), not just elemental fluorine (F2). The alumina bed should be designed to capture this broader range of fluorine-containing compounds.

Why Media Quality Drives Repeatable Capture

Evacuation duty is peak-driven and cyclic, so alumina performance depends on three key factors:

1. Capture performance under peak loading: Breakthrough margin is determined during peak flow and concentration swings. Media consistent adsorption capacity and fast kinetics perform predictably throughout its lifecycle, helping maintain planned service intervals.

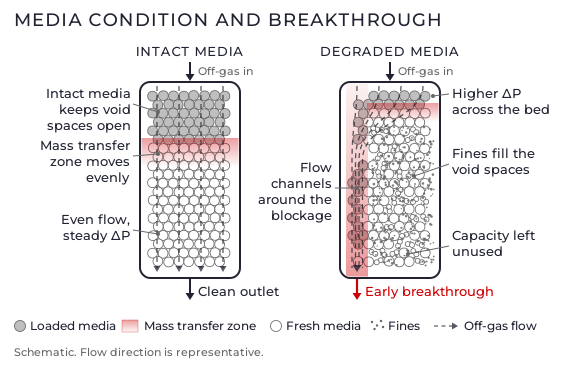

2. Mechanical integrity preserves bed geometry: The bed also serves as a hydraulic device. If pellets fracture or generate fines, ΔP increases, and flow distribution worsens, leading to maldistribution, early breakthrough in some areas, and unused capacity in others.
3. Lot-to-lot consistency reduces statistical risk: In repeated-cycle systems, variability in surface activity, binder quality, moisture, or size distribution causes inconsistent performance and increases operational risk.

How Lower-Quality Alumina Fails in Service

Lower-quality alumina usually fails through a series of issues rather than a single event:

• Early breakthrough or carryover: reactive species appear at the outlet sooner than expected, requiring more frequent change-outs and increasing EHS and compliance risks.
• ΔP increase, maldistribution, and channeling: fines block void spaces, raise ΔP, and cause short-circuiting, which accelerates breakthrough.
• Downstream fouling: dust migration can contaminate valves, instrumentation, filters, and vacuum equipment, turning the bed into a source of solids rather than a sink.
• Cycle-to-cycle instability: performance varies between evacuation events, increasing troubleshooting time and causing downtime.

Common Misassumptions in Media Selection

It is easy to assume activated alumina products are interchangeable because headline specifications may appear similar. However, in evacuation-driven fluorination service, critical factors such as attrition behavior, dust lever, pellet durability, and quality assurance discipline often determine outcomes.

"Innocuous vent gas" is an outcome, not an assumption. It results from proper bed sizing, mechanically stable media, consistent hydraulics, and timely change-outs, rather than system tolerance.

Practical Specification Checklist

If repeatability is important, develop the alumina specification with reliability with as a priority:

• Controlled size distribution (minimize segregation; predictable ΔP)
• Low dust and low attrition (protect hydraulics and downstream equipment)
• High crush strength (maintain bed structure over cycles)
• Consistent adsorption activity (capacity + kinetics that don't drift by lot)
• Moisture and impurity controls (reduce variability; avoid unintended side effects)
• Documented QA and traceability (procurement stays aligned with qualified performance)
• Packaging, handling, and storage controls (prevent moisture pickup and mechanical damage before loading)

Interra Global's Role

Interra Global supports fluorination off-gas systems by providing activated alumina engineered for adsorption applications that require consistency, mechanical durability, and predictable ΔP. The goal is lifecycle performance, including stable capture margin, stable ΔP, and predictable change-out intervals.
